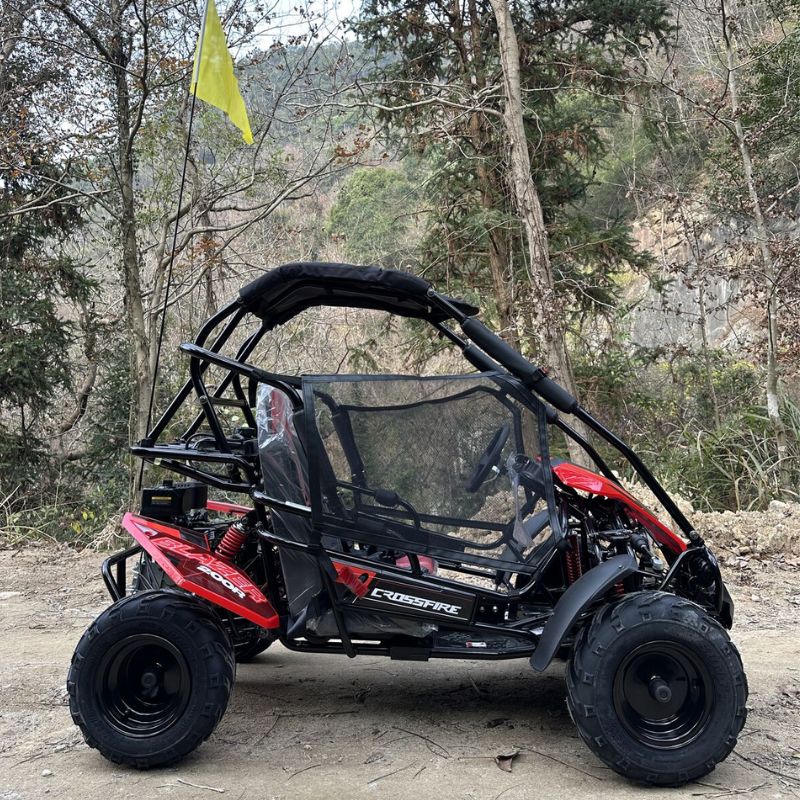

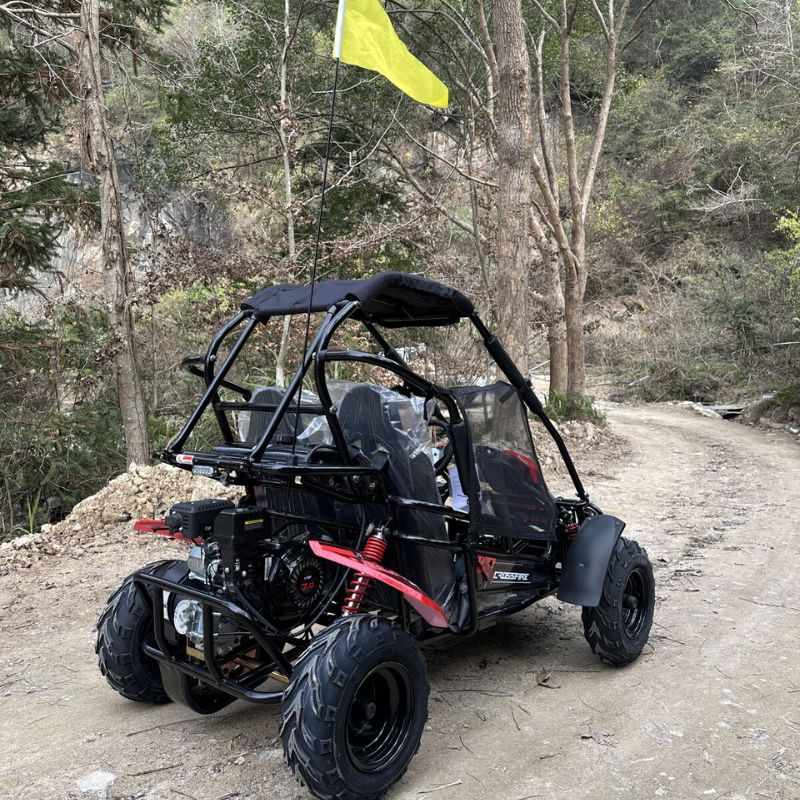

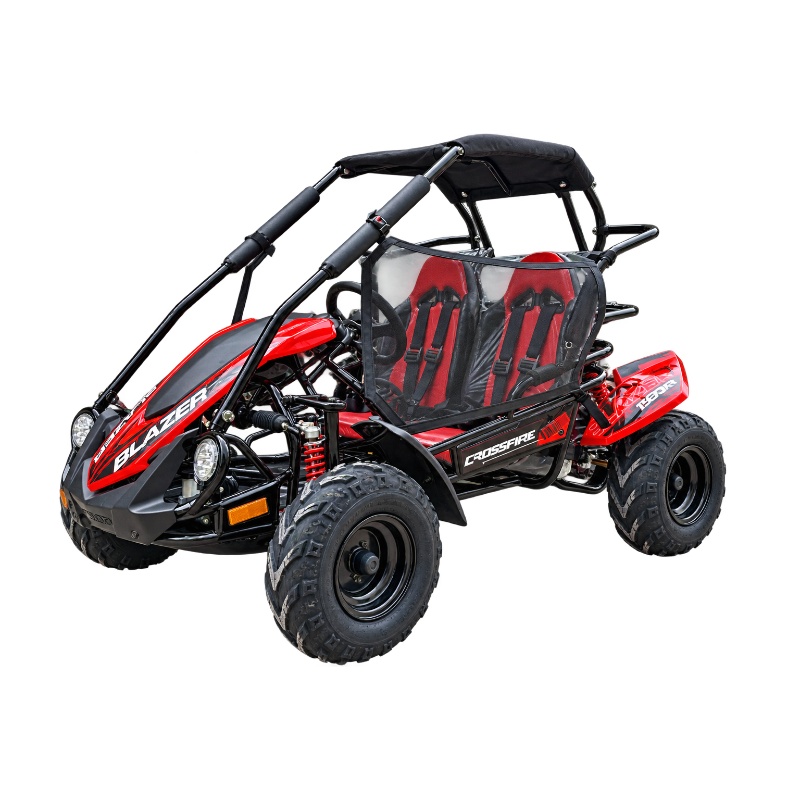

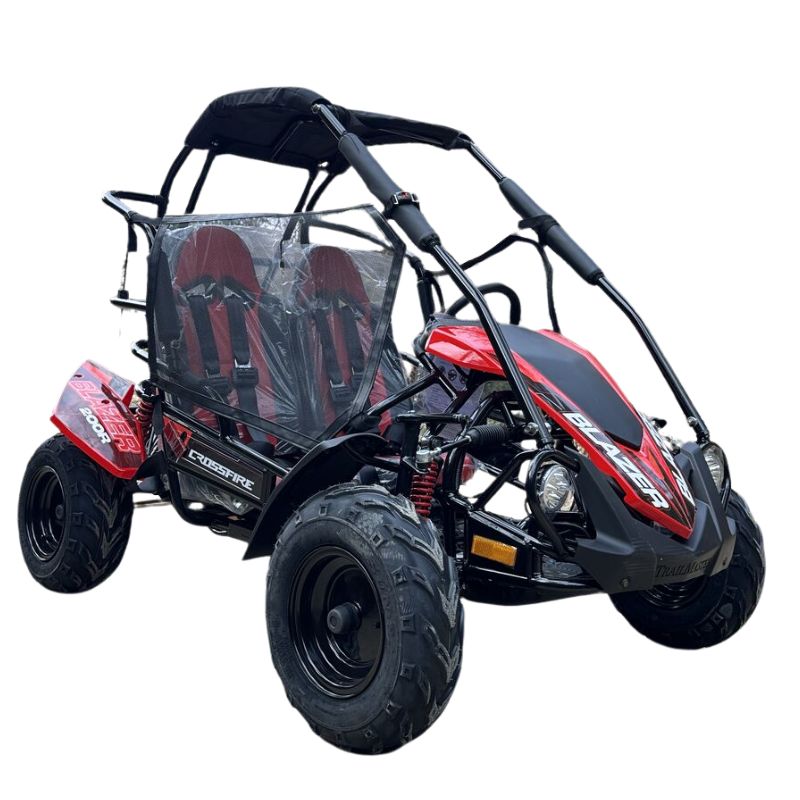

Crossfire Blazer 200R 200cc Go Kart - Red
Get ready to hit the trails in the Crossfire BLAZER 200R This amazing mid-size go-kart is great youth riders and will allow you to kick up some dirt at a max speed of 45 km/h. The TrailMaster Blazer 200 is great for one or two riders and can hold up to 130 Kg total, so you’re more than welcome to take a friend along for the ride. The go-kart features a 4-stroke single cylinder air cooled engine, adjustable driver’s seat, parking brake, and heavy-duty shock absorbers.
If that isn’t enough for you then you’ll be pleased to know that LED headlights are factory fitted. There’s not a whole lot that can get much better for go-kart fans, but if you really want to go there you should probably know that this go-kart actually has a larger tank than many other models. You can fill her up with 6L, which should provide you with a fun filled day no matter what terrain you’re in. There’s plenty of safety features like the hydraulic brakes, multipoint harness although helmet must be worn when riding.
Blazer 200R Included Features:
- Forward and Reverse Gears
- Electric Start

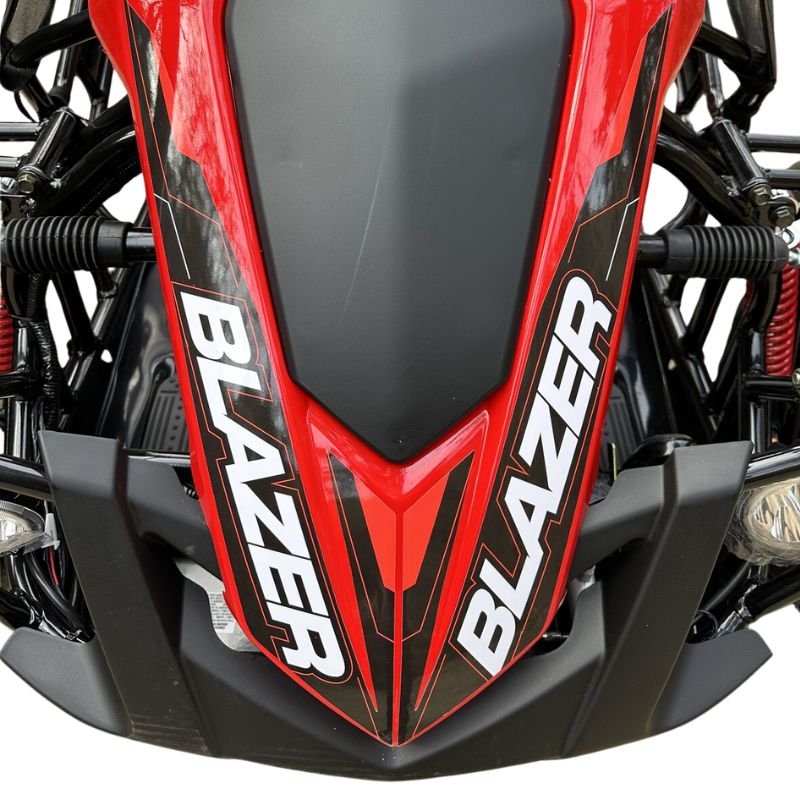

- LED Headlights

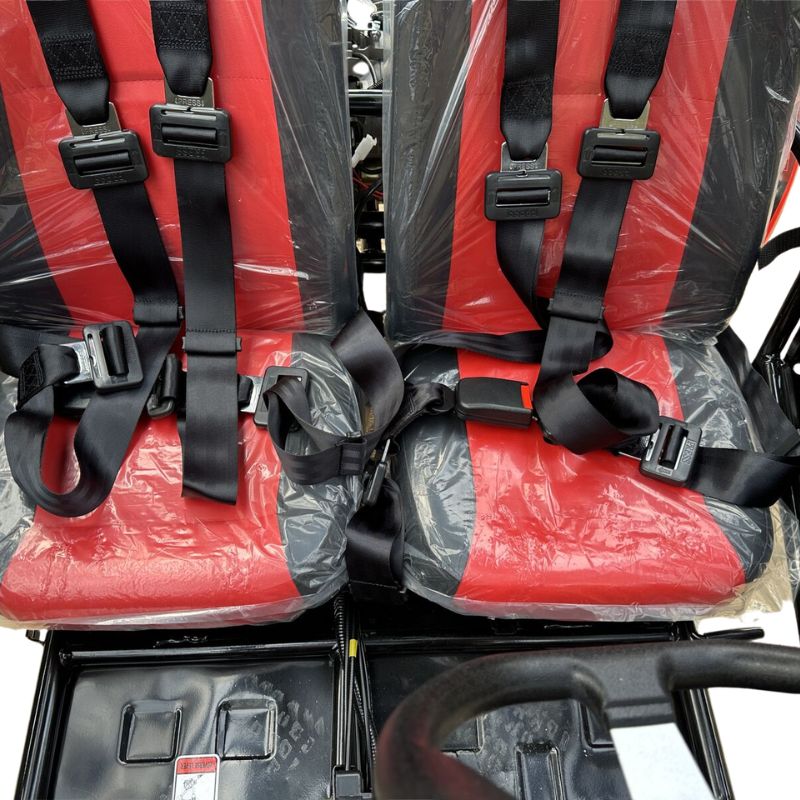

- Bucket Seats with Safety Belt
- Disc Brakes
General | |
Driveline / Driving Wheel | Chain / Dual wheel drive |
Maximum Speed | 45 km/h |
Seat Height | 260mm |
Battery | 12V 9Ah |
Bore x Stroke | 66mm x 53.5mm |
Front Suspension | Double A-arm / Swing-arm (Double Oil Damped Shock) |
Climbing Degree | 12 degrees |
Rear Suspension | Double A-arm / Swing-arm (Double Oil Damped Shock) |
Displacement | 200cc |
Front Tyre | 16 x 6-8 |
Rear Tyre | 16 x 7-8 |
Wheelbase | 1230mm |
Ground Clearance | Minimum: 75mm |
Fuel Capacity | 6L |
Engine Oil Grade | SG15W-40 |
Additional Information | Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such. This item is intended for off road use only. |
Storage | |
Warranty | *If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 12 months for vehicles up to 250cc. Please make sure you have proof of services. |
Technical | |
Engine Type | 4-stroke, single cylinder, air cooled |
Starting Mode | Electric / Pull Backup |
Ignition Type | C.D.I |
Carburetor | Brand: JF (RX) |
Clutch Type | Automatic CVT |
Front Brake | No / Hydraulic brake, Disc |
Rear Brake | No / Hydraulic brake, Disc |
Maximum Power | 6.3 HP @ 3600rpm |
Maximum Torque | 13 N.m @2500rpm |
Rider | |
Maximum Load | 130 Kg |
Product Size | 1700 x 1100 x 1300mm |
Important Safety & Product Information | Always wear a helmet, product clothing and gear such as goggles, long sleeves, long pants, boots and gloves/hand protection when riding these products. For motorised products a motorbike standard helmet needs to be worn. Never let children ride quad bikes that are meant for adults, even as passengers. Do not carry any passengers on quad bikes that are meant for one person. Quad bikes are not all-terrain vehicles so they cannot go safely on all types of terrain. Avoid riding on rough terrain or steep slopes. Ride on familiar tracks and beware of obstacles. Never ride under the influence of alcohol/drugs. Ensure children are supervised at all times near any quad bike activity. Always carry a mobile phone or radio device so you can contact help in case of an emergency. Always adhere to the maximum load of the product. Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such. This item is intended for off road use only. |
Packaging | |
Product Weight | 150 Kg |
Packaging Dimensions | 179 x 114 x 67cm (LxWxH) |
Crossfire Motorcycles Warranty/Servicing Conditions:
Please ensure you register your machine at: http://crossfiremotorcycles.com/warranty-registration/ within one week of purchasing
Assembly
Please ensure the product is properly assembled before use. Any Crossfire machine can only be assembled by a licensed mechanic in a licensed workshop. A receipt of payment for assembly may be required when making warranty claims for parts.
Servicing
Full service has to be conducted after 1 month of invoice date or after 10 hours of riding, whichever comes first. A receipt of payment for the service may be required when making warranty claims for parts. Your warranty will be voided, if any of these conditions are not met. Your warranty can be voided, if any non-genuine or non-standard part has been fitted to your machine.
All consequent services need to be conducted as per the machine user manual. If in doubt, please contact Crossfire Motorcycles for further information. All receipts of payment for the services may be required when making warranty claims for parts.
Operating the Machine
Crossfire Motorcycles Pty Ltd cannot be held responsible for any theft, damage or injury caused whilst operating the machine. Warranty does not cover any loss or damages incurred from reckless use of the machine, accident or collision. The upkeep and maintenance is the responsibility of the driver/rider and should be done prior to using the machine. Please refer to Assembly and Servicing above.
NSW Pre purchase check list (if not in NSW please find local state check list prior to purchase)
Quad Bike Safety – What You Need To Know
Quad Bike Training (NSW list of registered ATV organisations. Please look up in own state.)
Postage and Transit Insurance
Products damaged in transit will not be covered unless you have chosen Transit Insurance option ($55) at the time of purchase. If you have paid for Insurance, and you have received any item damaged in transit or missing components, please advise us within 1 week of receiving the product. All claims after 1 week will not be accepted.
Warranty Claim
All products are tested prior to packaging and dispatch. We warrant that all products are free from defect, and we will replace or repair any part that proves to be defective, at no charge, when your claim is under warranty.
Crossfire ATVs, UTVs, Go Karts and Motorbikes are covered by Parts Only Warranty ranging from 6 months and up to 2 years*.
All vehicles up to and including 250cc (except for 250GT – refer below to point 2) are covered by 6 months warranty, which can be extended to 12 months*
* If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 12 months for vehicles up to and including 250cc. Please make sure you have proof of services.
All vehicles above 250cc (and including 250GT) are covered by 12 months warranty, which can be extended to 24 months*
* If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles above 250cc (and including 250GT).
Please make sure you have proof of services. If you have any questions about the points above and require clarification, please contact Crossfire office.
In case where parts are claimed under warranty, please go to http://crossfiremotorcycles.com/warranty-claim/
We will advise if damaged parts are deemed to be covered under warranty, and on exact course of action. In a lot of cases, you will be required to ship any parts that you are claiming under warranty to our office. Please ship Only when advised by us to do so:
Crossfire Motorcycles
Warehouse 9/274-276 Hoxton Park Road,
Prestons, NSW, 2170
attention: Warranty Claims.
The part will be examined and tested by our mechanics and replaced, or repaired if deemed faulty. The buyer is responsible for all postage costs of returning any faulty part to us.
If a part has been deemed to be fault free, the customer is responsible for any return postage costs and will be charged for assessment time, at our discretion. Part will be held until these fees are paid. In case that the payment is not received and no pick up is arranged within 1 month, the part will be advertised and then publicly auctioned as per regulatory requirements.
Please ensure you understand these conditions before buying.
This warranty policy has been created with the aim of providing the best customer service and after sales service in the Australian motorcycle industry.
