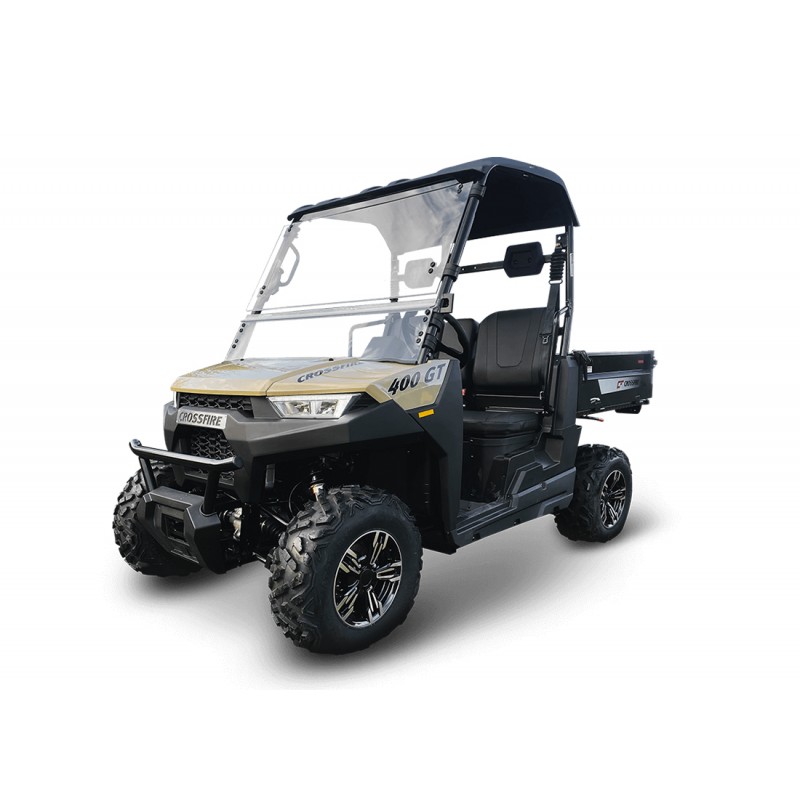

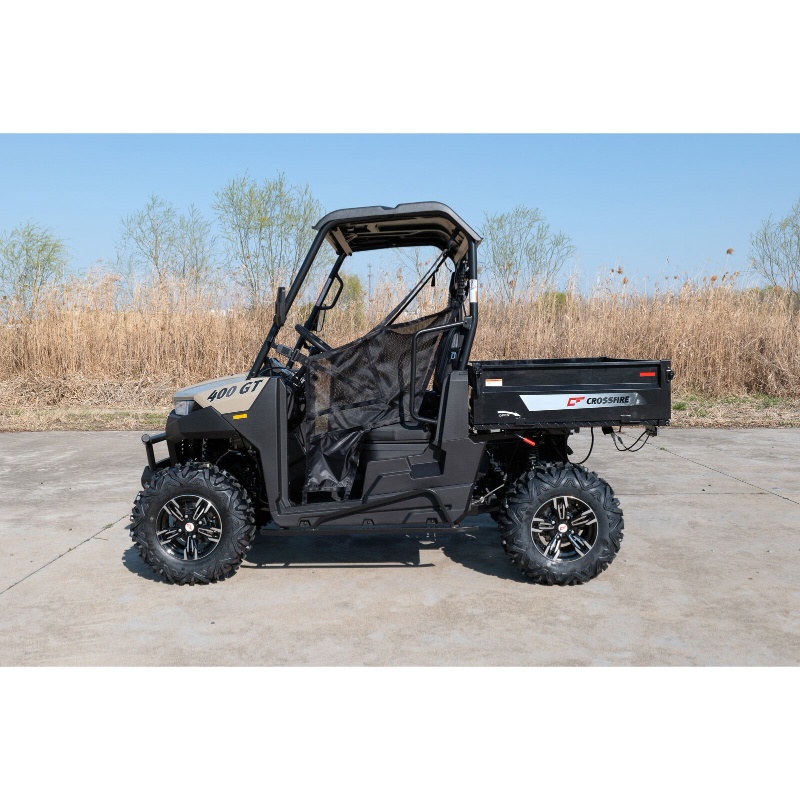

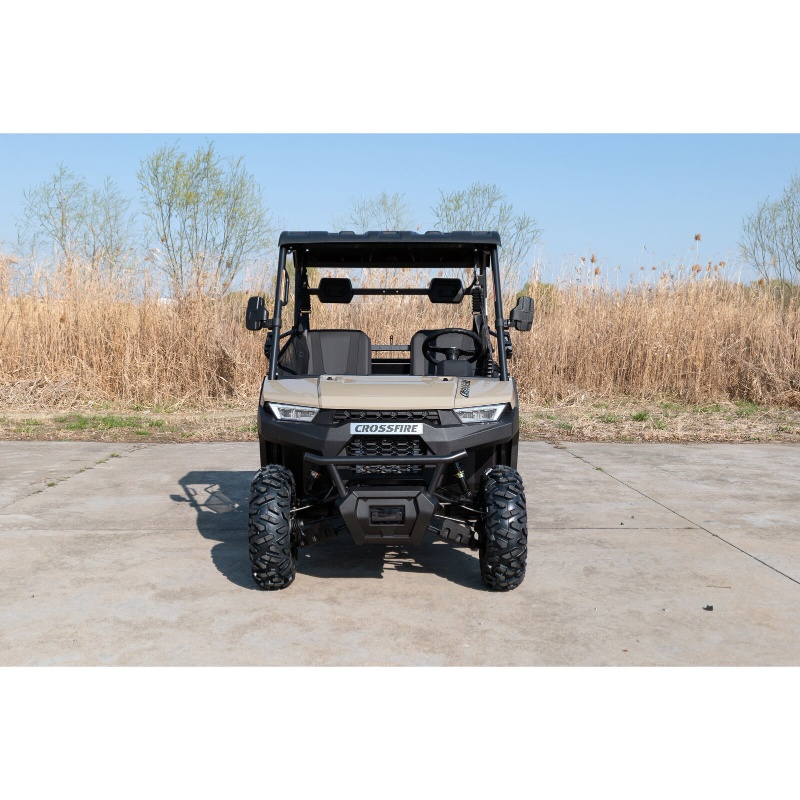

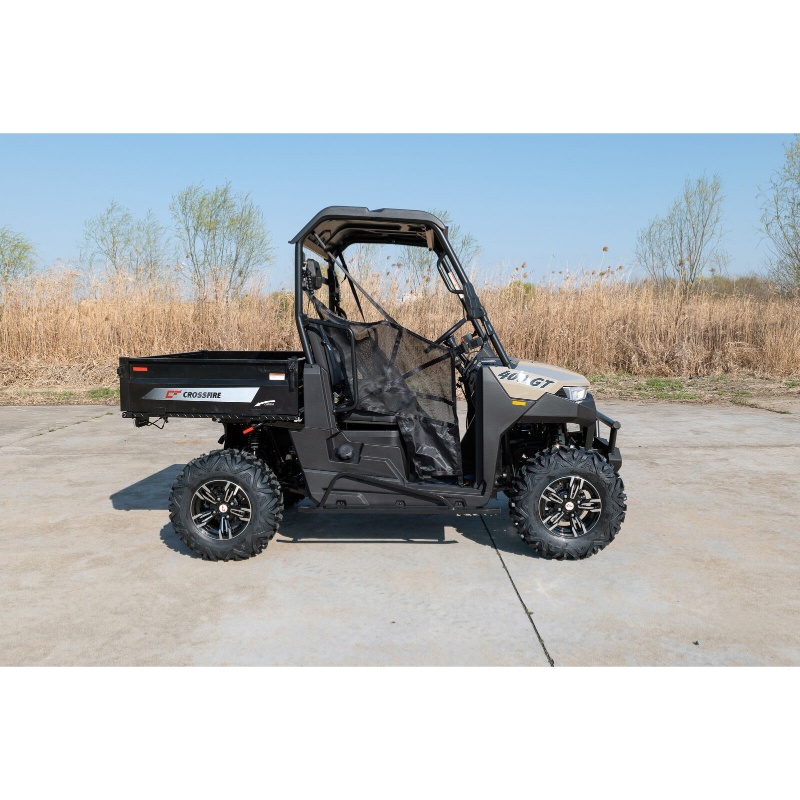

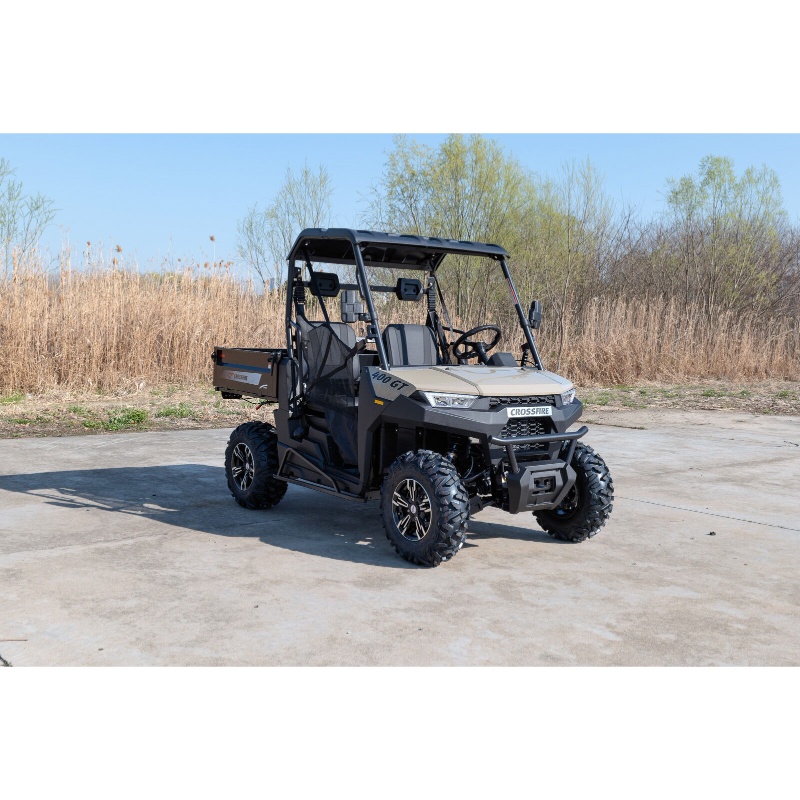

Crossfire 400GT Farm UTV - Desert Storm
Crossfire 400GT is a midsized side by side UTV featuring a gutsy 23HP motor perfect for off-road use and farming applications. The 400GT is a workhorse with a tray that is larger than most in the mid-sized category. With a great turning circle thanks to the turf mode setting and fairly light weight, the Crossfire 400GT will go over and not sink into the land. Did we mention the 400GT also comes equipped with both front and rear differential lock? The tray is a tipper (90cm*131cm) tray with hydraulic assister struts to help get load off quicker. All sides of the tray open so you can unload from the rear or any of the sides of the machine. The included roof and the windscreen provides shelter on those not so nice days. Not forgetting the winch which is now equipped with a remote control for easier operation in a sticky situation.
FEATURES:
- 23HP fuel injected liquid cooled engine Automatic CVT shaft driven transmission
- On demand 4WD with turf mode
- Rugged 25 in. AT tires with hydraulic disc brakes
- Compact design with comfortable bench seating
- Tows up to 200kg total trailer and cargo
- All LED Lights: Low beam & high beam
- Daytime running lights (DRLs)
- Tilt tray

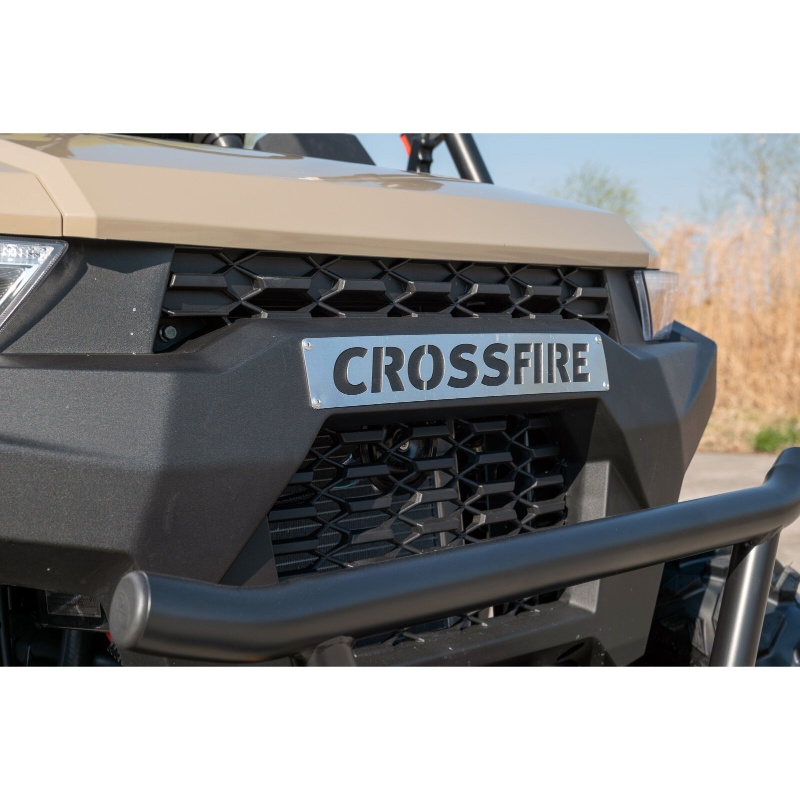

- Nudge bar
- Side brush bars
- 1100kg winch
General | |
Doors | $POA |
Roof | Included |
Winch | 1100 kg |
Bore x Stroke | 80 x 69.8 |
Front Suspension | Dual A-Arm independent suspension |
Rear Suspension | Dual A-Arm independent suspension |
Compression | 9.8:1 |
Displacement | 352cc |
Front Tyre | AT 25X 8-12 |
Rear Tyre | AT25X 10-12 |
Wheelbase | 188cm |
Ground Clearance | 28cm |
Fuel Capacity | 22L |
Towing Capacity | 200 kg |
Dry Weight | 505 kg |
Tray Size | 899 x 1310 x 280 mm |
Additional Information | Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. |
Technical | |
Aluminium rims | Included |
Towbar | Included |
Windshield | Included |
Engine Type | 4-stroke 4-valve SOHC |
Starting Mode | Electric |
Cooling System | Liquid |
Transmission | CVT / L-H-N-R-P |
Fuel | Delphi EFI |
Front Brake | Dual hydraulic disc |
Rear Brake | Dual hydraulic disc |
Maximum Power | 23 HP @7000rpm |
Maximum Torque | 27 N.m @5800rpm |
Rider | |
Product Size | 274cm (Length) x 150cm (Width) x 194cm (Height) |
Important Safety & Product Information | Using ATV with passenger greatly increases risk of rollover. Speed should be kept under 15 km/h. Always wear a helmet, product clothing and gear such as goggles, long sleeves, long pants, boots and gloves/hand protection when riding these products. For motorised products a motorbike standard helmet needs to be worn. Never let children ride quad bikes that are meant for adults, even as passengers. Do not carry any passengers on quad bikes that are meant for one person. Quad bikes are not all-terrain vehicles so they cannot go safely on all types of terrain. Avoid riding on rough terrain or steep slopes. Ride on familiar tracks and beware of obstacles. Never ride under the influence of alcohol/drugs. Ensure children are supervised at all times near any quad bike activity. Always carry a mobile phone or radio device so you can contact help in case of an emergency. Always adhere to the maximum load of the product. Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. |
Packaging | |
Packaging Dimensions | 232cm x 149cm x 120cm (LxWxH) |
